List of cyclotron line sources
This table attempts to summarize all known cyclotron line sources. It is based on the presentation "Spectral continua of accreting neutron star systems" by Jörn Wilms at the conference
Astrophysics of Neutron Stars 2010 with some information added later.
T/P = Transient/Persistent
Source | Ecyc [keV] | Pspin [s] | Porbital [d] | Companion | T/P | Discovery | Other ref |
---|---|---|---|---|---|---|---|
Swift J1626.6-5156 | 4.9, 8.4, 12.6, 16.9 [1] | 15.4 | 132.9 | Be | P | Swift/BAT [2] | [3], [4] |
4U 0115+634 | 14, 24, 36, 48, 62 | 3.6 | 24.3 | Be | T | HEAO-1 [5] RXTE [6], BeppoSAX [7] | |
4U 1907+09 | 18, 38 | 441 | 8.37 | B2 III-IV | P | BeppoSAX [8] | |
4U 1538-52 | 22, 47 | 530 | 3.7 | B0I | P | Ginga [9], RXTE [10] | |
Vela X-1 | 24, 52 | 283 | 8.96 | B0.5Ib | P | Mir-HEXE [11], RXTE [12] | |
V 0332+53 | 27, 51, 74 | 4.37 | 34.25 | Be | T | Ginga [13] | |
Cep X-4 | 28 | 66.25 | >23 | B1 | T | Ginga [14] | |
Cen X-3 | 29 | 4.8 | 2.09 | O6.5II | P | BeppoSAX [15], RXTE [16] | |
X Per | 29? | 837 | 250.3 | B0 III–Ve | P | RXTE [17] | |
RX J0440.9+4431 | 32 | 203 | 155 | B0.2 Ve | T | INTEGRAL, RXTE + Swift [18] | |
MXB 0656-072 | 33 | 160 | 100? | O9.7Ve | T | RXTE [19] | |
XTE J1946+274 | 36 | 15.8 | 169.2 | B0-1V-IVe | T | RXTE [20] | |
4U 1626-67 | 37 | 7.66 | 0.028 | WD? | P | BeppoSAX [21], RXTE [16] | |
GX 301-2 | 37 | 690 | 41.5 | B1.2Ia | P | Ginga [22] | |
Her X-1 | 41 | 1.24 | 1.7 | A9-B | P | Ballon-HEXE [23] | |
A0535+26 | 45, 100+ | 104 | 110.6 | Be | T | HEXE [11][24], CGRO [25] | |
1A1118-616 | 55, 110? | 408 | 400-800? | O9.5IV-Ve | T | RXTE [26], Suzaku [27] | |
GRO J1008-57 | 88? | 93.7 | 249.46 | B1-B2 | T | CGRO [28] | |
GX 304-1 | 54 | 272 | 132.2 | B2 Vne | P | RXTE [29], INTEGRAL [30] | |
KS 1947+300 | 12 | 18.8 | 40.4 | B0Ve | T | NuSTAR [31] |
Location in the Galaxy

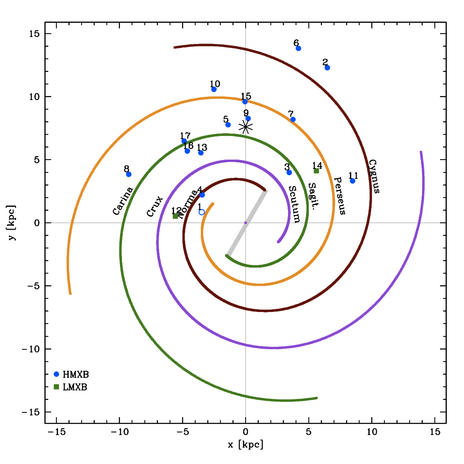

The figure below displays the position of the sources listed above in the Galaxy as far as known at this moment. Click on the figure for a larger version. Labels indicate the ordinal number in the first column of the table. Uncertainties in the distances are not indicated. Empty symbols represent sources for which there is no distance info in the literature; they have been artificially set to a distance of 7.6 kpc. The spiral arms are from [32]. Figure and data provided by Arash Bodaghee, SSL, UC Berkeley.
# | Source | Dist. [kpc] | Reference | |
---|---|---|---|---|
![]() |
1 | Swift J1626.6-5156 | 8±2.4 | [33] |
2 | 4U 0115+634 | 8±1 | [34] | |
3 | 4U 1907+09 | 5 | [35] | |
4 | 4U 1538-52 | 6.4±1 | [36] | |
5 | Vela X-1 | 1.4±0.5 | [37] | |
6 | V 0332+53 | 7.5±1.5 | [38] | |
7 | Cep X-4 | 3.8±0.6 | [39] | |
8 | Cen X-3 | 10±1 | [40] | |
9 | X Per | 0.7±0.3 | [41] | |
10 | MXB 0656-072 | 3.9±0.1 | [42] | |
11 | XTE J1946+274 | 9.5±2.9 | [43] | |
12 | 4U 1626-67 | 9 | [44] | |
13 | GX 301-2 | 4.1 | [45] | |
14 | Her X-1 | 6.6±0.4 | [46] | |
15 | A0535+26 | 2-0.7+0.4 | [47] | |
16 | 1A1118−61 | 5±2 | [48] | |
17 | GRO J1008−57 | 5 | [44] |
References
- ↑ Molkov, S., et al. 2021, ApJ, 915, L27 (NASA ADS)
- ↑ Palmer, D., et al., 2005, ATel 678 (ATEL)
- ↑ DeCesar, M.E., Boyd, P.T., Markwardt, C.B., Pottschmidt, K., Miller, M.C., Strohmayer, T. E., Suchy, S., Wilms, J., 2009, BAAS 41, #432.02 (NASA ADS)
- ↑ DeCesar, M.E., et al., 2013, ApJ, 762, 61 (NASA ADS)
- ↑ Wheaton, W. A., Doty, J. P., Primini, F. A., et al., 1979, Nature, 282, 240 (NASA ADS)
- ↑ Heindl, W.A., Coburn, W., Gruber, D.E., et al., ApJ, 521, L49 (NASA ADS)
- ↑ Santangelo, A., Segreto, A., Giarrusso, S., et al., 1999, ApJ, 523, L85 (NASA ADS)
- ↑ Cusumano, G., di Salvo, T., Burderi, L., 1998, A&A, 338, L79 (NASA ADS)
- ↑ Clark, G.W., Woo, J.W., Nagase, F., Makishima, K., Sakao, T., 1990, ApJ, 353, 274 (NASA ADS)
- ↑ Rodes-Roca, J.J., Torrejón, J.M., Kreykenbohm, I., et al., 2009, A&A, 508, 395 (NASA ADS)
- ↑ 11.0 11.1 Kendziorra, E., Mony, B., Kretschmar, P., et al. 1992, in The Compton Observatory Science Workshop, ed. C. R. Shrader, N. Gehrels, & B. Dennis (CP 3137) (Greenbelt: NASA/GSFC), 217 (NASA ADS)
- ↑ Kreykenbohm, I., Coburn, W., Wilms, J., et al. 2002, A&A, 395, 129 (NASA ADS)
- ↑ Makishima, K., Mihara, T., Ishida, M., et al., 1990, ApJ, 365, L59 (NASA ADS)
- ↑ Mihara, T., Makishima, K., Kamijo, S. et al., 1991, ApJ, 379, L61 (NASA ADS)
- ↑ Santangelo, A., del Sordo, S., Segreto, A., et al., 1998, A&A, 340, L55 (NASA ADS)
- ↑ 16.0 16.1 Heindl, W.A. & Chakrabarty, D., 1999, Highlights in X-ray Astronomy, MPE report, 272, 25 (NASA ADS)
- ↑ Coburn, W., Heindl, W.A., Gruber, D.E., et al., 2001, ApJ, 552, 738 (NASA ADS)
- ↑ Tsygankov, S. S., Krivonos, R. A., Lutovinov, A. A., MNRAS (NASA ADS)
- ↑ Heindl, W.A., Coburn, W., Kreykenbohm, I., Wilms, J., 2003, ATel 200 (NASA ADS)
- ↑ Heindl, W.A., Coburn, W., Gruber, D.E., et al., 2001, ApJ, 563, L35 (NASA ADS)
- ↑ Orlandini M., dal Fiume, D., Frontera, F., et al., 1998, ApJ, 500, L163 (NASA ADS)
- ↑ Ph.D. thesis, Dept. of Physics, Univ. of Tokyo, 1995 (NASA ADS)
- ↑ Truemper, J., Pietsch, W., Reppin, C., 1978, ApJ, 219, L105 (NASA ADS)
- ↑ Kendziorra, E., Kretschmar, P., Pan, H.C., et al. 1994, A&A, 291, L31 (NASA ADS)
- ↑ Maisack, M., Grove, J.E., Kendziorra, E., et al., 1997, A&A, 325, 212 (NASA ADS)
- ↑ Doroshenko, V., Suchy, S., Santangelo, A., et al., 2010, A&A, 515, L1 (NASA ADS)
- ↑ Suchy, S., Pottschmidt, K., Rothschild, R.E., et al., 2011, arXiv:1103.1370 (NASA ADS)
- ↑ Shrader, C.R., Sutaria, F.K., Singh, K.P., Macomb, D.J., 1991, ApJ, 512, 920 (NASA ADS)
- ↑ Yamamoto,T., Sugizaki, M., Mihara, T., et al., 2011, arXiv, 1102.4232 (NASA ADS)
- ↑ Klochkov, Doroshenko, Santangelo, et al., 2012, A&A 542, L28 (NASA ADS)
- ↑ Fürst F., Pottschmidt K., Wilms J., et al., 2014, ApJ 784, L40 (NASA ADS)
- ↑ Vallée, Jacques P., 2008, ApJ 681, 303 (NASA ADS)
- ↑ Reig, P.; Nespoli, E.; Fabregat, J.; Mennickent, R., 2011, A&A accepted; arXiv:1106.4671 (NASA ADS)
- ↑ Negueruela, I., Okazaki, A.T., Fabregat, J., et al., 2001, A&A, 369, 117 (NASA ADS)
- ↑ Cox, N.L.J., Kaper, L. & Mokiem, M.R., 2005, A&A 436, 661 (NASA ADS)
- ↑ Reynolds, A.P., Bell, S.A. & Hilditch, R.W. (NASA ADS)
- ↑ Chevalier, C. & Ilovaisky, S.A., 1998, A&A, 330, 201 (NASA ADS)
- ↑ Negueruela, I., Roche, P., Fabregat, J., Coe, M.J., 1999, MNRAS, 307, 695 (NASA ADS)
- ↑ Bonnet-Bidaud, J.M. & Mouchet, M., A&A, 332, L9 (NASA ADS)
- ↑ Hutchings, J.B., Cowley, A.P., Crampton, D., van Paradijs, J., White, N.E., 1979, ApJ, 229, 1079 (NASA ADS)
- ↑ Lyubimkov, L.S., Rostopchin, S.I., Roche, P., Tarasov, A.E., 1997, MNRAS, 286, 549 (NASA ADS)
- ↑ McBride, V.A., Wilms, J., Coe, M.J., et al., 2006, A&A 451, 267 (NASA ADS)
- ↑ Wilson, C.A., Finger, M.H., Coe, M.J., Negueruela, I., 2003, ApJ, 584, 996 (NASA ADS)
- ↑ 44.0 44.1 Grimm, H.-J., Gilfanov, M., Sunyaev, R., 2002, A&A, 391, 923 (NASA ADS)
- ↑ Leahy D.A., 2002, A&A, 391, 219 (NASA ADS)
- ↑ Reynolds, A.P., Quaintrell, H., Still, M.D., et al., 1997, MNRAS, 288, 43 (NASA ADS)
- ↑ Steele, I.A., Negueruela, I., Coe, M.J., Roche, P., 1998, MNRAS, 297, L5 (NASA ADS)
- ↑ Janot-Pacheco, E., Ilovaisky, S.A., Chevalier, C., 1981, A&A, 99, 274 (NASA ADS)
