Vela X-1

From Remeis-Wiki
Jump to: navigation, search


Other names: 4U 0900-40 (Simbad, [1])

Monitoring data: CGRO/BATSE RXTE/ASM Swift/BAT MAXI Fermi/GBM pulsed flux Fermi/GBM occultation

Coordinates

RA 09h 02' 06.86" , DEC -40° 33' 16."
RA 135.528583deg , DEC -40.554694deg
l 263.06 , b 3.93

Binary system

Distance: 1.9±0.2 kpc ([2])

Orbit

924

Parameter Value Unit Reference
Porb 8.964357(29) days [3]
T90 2452974.501(12) JD [3]
a sin i 113.98(35) lt-sec [4]
e 0.0885(25) [4]
omega 150.6(18) deg [4]
i 78.8±1.2 deg [5]

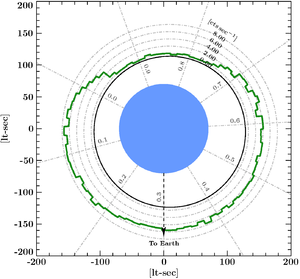

The figure to the right shows the orbit and the average RXTE/ASM lightcurve in green.


Optical Companion

Names: HD 77581, GP Vel

Parameter Value Unit Reference
Mopt 24.00±0.037 M [5]
Ropt 31.28±0.28 R [5]
V 6.926
K 5.596 2MASS

Available data

  • ASCA: 3 observations in 1993 and 1995
  • RXTE: many different observations between 1996 and 2008
  • Chandra: 4 observations in 2001 and 2002
  • XMM Newton: One full orbit (~100 ks) in 2005
  • BeppoSAX: 5 observations in 1996 & 1997
  • INTEGRAL: various observations as part of Vela region
  • Swift: 4 short XRT exposures in 2005
  • Suzaku: 1 long exposure in 2008

Description

Vela X-1 is an eclipsing high mass X-ray binary consisting of the B0.5Ib super giant HD77581 and a neutron star with a mass estimated as 1.77±0.08 M ([5]), the highest well-determined such value. Due to the small separation of the binary system with an orbital radius of just 1.7R, the neutron star is deeply embedded in the dense stellar wind (Mdot = 4×10−6 M yr−1 [2]) of the companion, making Vela X-1 an archetypical wind-accreting system. X-ray lines show that the stellar wind is inhomogeneous with many dense clumps ([6]) being embedded in a much thinner, highly ionized component ([7]).


Flux

Vela asm orbital.png

Vela X-1 is a persistent source, with irregular flux variations, sometimes strong flares and off-states not related to the eclipses ([3]), indicating rather inhomogenous, clumpy accretion. Fürst et al. ([8], [9]) analyzed Integral data in detail and found a log-normal distribution of the intensity, ranging from an average flux level of ∼300 mCrab to >2 Crab.

The averaged countrate of Vela X-1 over the binary orbit in the classical X-ray band (2-10 keV) shows a strong orbital modulation, which can be explained by slowly increased absorption towards later orbital phases (see, e.g., Fig.4 in [9]). For individual orbits there is not necessarily a smooth change in absorption, but strong variations not easily connected to possible structures in the wind.

Spectrum

The X-ray spectrum of Vela X-1 is usually modeled with a power law modified at higher energies by an exponential cutoff and at lower energies by strongly varying photoelectric absorption at lower energies, as well as an iron fluorescence line and occasionally an iron edge at 7.27 keV ([2]).

Cyclotron line features at ~25 keV and ~50 keV have been observed by various satellites (e.g., [10]).

Pulse Period evolution

Pp vela ao4.gif

The evolution of the spin period is most appropriately described by a random walk model ([(Tsunemi89)]), see also the Fermi/GBM data.

Pulse Profile

At energies below 5 keV, the pulse profile consists of a complex five-peaked structure, which transforms at energies above 20 keV into a simple double-peaked pulse profile ([11]).
