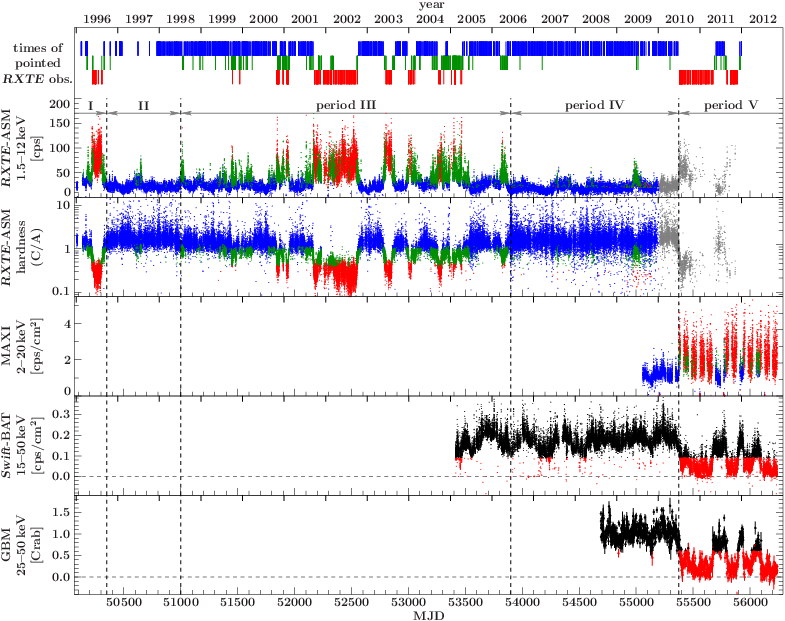

Monsterlightcurve (xfig example)
Jump to navigation
Jump to search
File common_pars.sl, which I use to load some parameters common to all plots in a paper:
%% -- set up variables for plotting variable width = 10; variable height = 10; variable fullwidth = 25; variable mjdmin = MJDofDate(1995,12,15); variable mjdmax = MJDofDate(2012,12,30); variable yearmin = dateOfMJD(mjdmin); variable yearmax = dateOfMJD(mjdmax); variable max_asmh = 2.5; variable min_asmh = 0.; variable max_asmr = 150.; variable min_asmr = 0.; %%ends of activity periods variable e1 = 50350; variable e2 = 51000; variable e3 = 53900; variable e4 = 55375; %%define colours variable cl_hard = "blue"; variable cl_tran = "green4"; variable cl_soft = "red"; variable cl_neutral = "gray"; variable cl_hard_bg = "blue1"; variable cl_soft_bg = "pink3"; %%define data specific stuff variable gamma_hard = 2.0; variable gamma_soft = 2.5; %define mapping parameters variable asm_th = 20.; % threshold variable asm_x0 = 0.28; %x-intersection variable asm_hs = 55.; %hard slope variable asm_ss = 350.; %soft slope %%define paths to data variable maxiname = "lc_1orbit-Cyg_X-1_55058.09375-56244.21875.csv"
Actual plotting routine:
require("isisscripts"); require("../common_pars"); variable width=25; variable hh = 3.5; variable asmmin = 0; variable asmmax = 200; variable asmamin = 0; variable asmamax = 100; variable asmcmin = 0; variable asmcmax = 50; variable batmin = -0.09; variable batmax = 0.39; variable asmarrow = 170; variable ptext = 185; variable dnd = fits_read_table("../data/all_disk_nodisk.fits"); variable obs = fits_read_table("../data/all_obs.fits"); variable tt = (obs.tstart+obs.tstop)/2.; variable pca_hard = where(dnd.bknpower_1_phoindx1_value < gamma_hard); variable pca_tran = where(gamma_hard <= dnd.bknpower_1_phoindx1_value < gamma_soft); variable pca_soft = where(gamma_soft <= dnd.bknpower_1_phoindx1_value); variable asm = RXTE_ASM_lightcurve("cygx1"); struct_filter(asm,where(asm.rate_a > 0)); struct_filter(asm,where(asm.rate_b > 0)); struct_filter(asm,where(asm.rate_c > 0)); variable asm_late = struct_filter(asm,where(asm.time > 55200);copy,dim=0); struct_filter(asm,where(asm.time < 55200)); variable hardness = asm.rate_c/asm.rate_a; variable asm_hard = where(asm.rate <= asm_th or asm.rate <= (hardness-asm_x0)*asm_hs); variable asm_tran = where(asm.rate > asm_th and asm.rate > (hardness-asm_x0)*asm_hs and asm.rate <= (hardness-asm_x0)*asm_ss); variable asm_soft = where(asm.rate > asm_th and asm.rate > (hardness-asm_x0)*asm_ss); %%index for the times during the longhard state variable ind_longhard = where( 53900 < asm.time < 54900); %BAT variable bat = fits_read_table("../data/CygX-1.orbit.lc.fits"); % bat.time = bat.time/3600./24.+51910+0.00074287038; struct_filter(bat,where(bat.time < 56240)); variable bat_soft = where(bat.rate <= 0.09); variable bat_uncat = where(bat.rate > 0.09); %%MAXI variable maxi = ascii_read_table("../data/"+maxiname, [{"%F","time"},{"%F","rate"},{"%F","err"}, {"%F","lo"},{"%F","loerr"}, {"%F","mi"},{"%F","mierr"}, {"%F","hi"},{"%F","hierr"}]); struct_filter(maxi,where(maxi.time < 56240)); variable maxi_hard = where(maxi.lo <= 1.4*maxi.mi/maxi.lo); variable maxi_tran = where(1.4*maxi.mi/maxi.lo < maxi.lo <= 8./3.*maxi.mi/maxi.lo); variable maxi_soft = where(maxi.lo > 8./3.*maxi.mi/maxi.lo); %%GBM ()=evalfile("../gbm/init_gbm.sl"); variable gbm = @d; %struct_filter(gbm, where(gbm.nr_occ>10)); struct_filter(gbm,where(gbm.mjd_start < 56240)); variable gbm_soft = where(1e-3*get_struct_field (gbm, cnfg.flux[1]) < 0.6); variable gbm_uncat = where(1e-3*get_struct_field (gbm, cnfg.flux[1]) > 0.6); %%axis labels variable mino = [1996:2013]; variable maj = [1996:2013]+0.5; variable extramin = Double_Type[0]; variable q,i; variable ticc=String_Type[length(maj)]; _for i (0,2013-1996-1,1){ ticc[i]=string(mino[i]); _for q (1,11,1){ extramin = [extramin,1996+i+q/12.]; } } variable plg = xfig_plot_new(width,hh*5./7.); plg.world1(mjdmin,mjdmax,-1,4); plg.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365., -1,4); plg.x1axis(;off); plg.x2axis(;major = maj, minor = mino, ticlabels = ticc, major_len=0,minor_len=0.2,minor_width=2 ); plg.yaxis(;ticlabels=0,major=0,minor=0); _for i (0,length(pca_hard)-1,1){ plg.plot([tt[pca_hard[i]],tt[pca_hard[i]]],[2,3];color=cl_hard); }; _for i (0,length(pca_tran)-1,1){ plg.plot([tt[pca_tran[i]],tt[pca_tran[i]]],[1,2];color=cl_tran); }; _for i (0,length(pca_soft)-1,1){ plg.plot([tt[pca_soft[i]],tt[pca_soft[i]]],[0,1];color=cl_soft); }; plg.ylabel("\begin{center}times of\\pointed \\\textsl{RXTE} obs.\end{center}"R;rotate=-90); plg.x2label("year"); variable pl_asm = xfig_plot_new(width,hh); pl_asm.world1(mjdmin,mjdmax,asmmin,asmmax); pl_asm.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365., asmmin,asmmax); pl_asm.x2axis(;off); pl_asm.y2axis(;ticlabels=0); pl_asm.plot(asm.time[asm_tran],asm.rate[asm_tran];sym="point",size=0.1,color=cl_tran); pl_asm.plot(asm.time[asm_soft],asm.rate[asm_soft];sym="point",size=0.1,color=cl_soft); pl_asm.plot(asm.time[asm_hard],asm.rate[asm_hard];sym="point",size=0.1,color=cl_hard); pl_asm.plot(asm_late.time,asm_late.rate;sym="point",size=0.1,color="gray"); pl_asm.plot([e1,e1],[asmmin,asmmax];line=1,width=2,depth=10); pl_asm.plot([e2,e2],[asmmin,asmmax];line=1,width=2,depth=10); pl_asm.plot([e3,e3],[asmmin,asmmax];line=1,width=2,depth=10); pl_asm.plot([e4,e4],[asmmin,asmmax];line=1,width=2,depth=10); pl_asm.plot([mjdmin,e1],[asmarrow,asmarrow]; line=0, forward_arrow, arrow_thickness =1,color="gray"); pl_asm.plot([e1,e2],[asmarrow,asmarrow]; line=0, forward_arrow, backward_arrow, arrow_thickness =1,color="gray"); pl_asm.plot([e2,e3],[asmarrow,asmarrow]; line=0, forward_arrow, backward_arrow, arrow_thickness =1,color="gray"); pl_asm.plot([e3,e4],[asmarrow,asmarrow]; line=0, forward_arrow, backward_arrow, arrow_thickness =1,color="gray"); pl_asm.plot([e4,mjdmax],[asmarrow,asmarrow]; line=0, backward_arrow, arrow_thickness =1,color="gray"); pl_asm.xylabel((mjdmin+e1)/2.,ptext,"I";depth=10); pl_asm.xylabel((e1+e2)/2.,ptext,"II";depth=10); pl_asm.xylabel((e2+e3)/2.,ptext,"period III";depth=10); pl_asm.xylabel((e3+e4)/2.,ptext,"period IV";depth=10); pl_asm.xylabel((e4+mjdmax)/2.,ptext,"period V";depth=10); pl_asm.ylabel("\begin{center}\textsl{RXTE}-ASM \\1.5--12\,keV \\$[$cps$]$\end{center}"R); variable pl_asmh = xfig_plot_new(width,hh); pl_asmh.world1(mjdmin,mjdmax,0.08,15;ylog); pl_asmh.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365., 0.08,10;ylog); pl_asmh.x2axis(;major = maj, minor = mino, ticlabels = ticc, major_len=0,minor_len=0.2,minor_width=2 ); pl_asmh.y2axis(;ticlabels=0); %pl_asmh.y1axis(;format="$10^{%.1f}$"R); pl_asmh.plot(asm.time[asm_tran],asm.rate_c[asm_tran]/asm.rate_a[asm_tran]; sym="point",size=0.1,color=cl_tran); pl_asmh.plot(asm.time[asm_soft],asm.rate_c[asm_soft]/asm.rate_a[asm_soft]; sym="point",size=0.1,color=cl_soft); pl_asmh.plot(asm.time[asm_hard],asm.rate_c[asm_hard]/asm.rate_a[asm_hard]; sym="point",size=0.1,color=cl_hard); pl_asmh.plot(asm_late.time,asm_late.rate_c/asm_late.rate_a; sym="point",size=0.1,color="gray"); pl_asmh.plot([e1,e1],[asmmin,asmmax];line=1,width=2,depth=10); pl_asmh.plot([e2,e2],[asmmin,asmmax];line=1,width=2,depth=10); pl_asmh.plot([e3,e3],[asmmin,asmmax];line=1,width=2,depth=10); pl_asmh.plot([e4,e4],[asmmin,asmmax];line=1,width=2,depth=10); pl_asmh.ylabel("\begin{center}\textsl{RXTE}-ASM \\ hardness \\ (C$/$A)\end{center}"R); variable pl_bat = xfig_plot_new(width,hh); pl_bat.world(mjdmin,mjdmax,batmin,batmax); pl_bat.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365.,batmin,batmax); pl_bat.y2axis(;ticlabels=0,tic_depth=3); pl_bat.x2axis(;major = maj, minor = mino, ticlabels = ticc, major_len=0,minor_len=0.2,minor_width=2 ); pl_bat.plot(bat.time[bat_soft],bat.rate[bat_soft];sym="point",size=0.1,color=cl_soft); pl_bat.plot(bat.time[bat_uncat],bat.rate[bat_uncat];sym="point",size=0.1); pl_bat.plot([e1,e1],[batmin,batmax];line=1,width=2,depth=10); pl_bat.plot([e2,e2],[batmin,batmax];line=1,width=2,depth=10); pl_bat.plot([e3,e3],[batmin,batmax];line=1,width=2,depth=10); pl_bat.plot([e4,e4],[batmin,batmax];line=1,width=2,depth=10); pl_bat.plot([mjdmin,mjdmax],[0,0];color="gray",line=1); pl_bat.y1axis(;format="%.1f",tic_depth=3); pl_bat.ylabel("\begin{center}\textsl{Swift}-BAT \\ 15--50\,keV \\$[$cps/cm$^2]$\end{center}"R); variable pl_maxi = xfig_plot_new(width,hh); pl_maxi.world(mjdmin,mjdmax,0,5.5); pl_maxi.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365.,0,6); pl_maxi.x2axis(;major = maj, minor = mino, ticlabels = ticc, major_len=0,minor_len=0.2,minor_width=2 ); pl_maxi.y2axis(;ticlabels=0); pl_maxi.plot(maxi.time[maxi_tran],maxi.rate[maxi_tran];sym="point",size=0.1,color=cl_tran); pl_maxi.plot(maxi.time[maxi_soft],maxi.rate[maxi_soft];sym="point",size=0.1,color=cl_soft); pl_maxi.plot(maxi.time[maxi_hard],maxi.rate[maxi_hard];sym="point",size=0.1,color=cl_hard); pl_maxi.plot([e1,e1],[0,6];line=1,width=2,depth=10); pl_maxi.plot([e2,e2],[0,6];line=1,width=2,depth=10); pl_maxi.plot([e3,e3],[0,6];line=1,width=2,depth=10); pl_maxi.plot([e4,e4],[0,6];line=1,width=2,depth=10); pl_maxi.ylabel("\begin{center}MAXI \\ 2--20\,keV \\$[$cps/cm$^2]$\end{center}"R); variable pl_gbm = xfig_plot_new(width,hh); pl_gbm.world(mjdmin,mjdmax,-0.4,1.9); pl_gbm.world2(yearmin.year+(yearmin.month-1)/12.+yearmin.day/365., yearmax.year+(yearmax.month-1)/12.+yearmax.day/365.,-0.4,1.9); pl_gbm.x2axis(;major = maj, minor = mino, ticlabels = ticc, major_len=0,minor_len=0.2,minor_width=2 ); pl_gbm.y1axis(;format="%.1f",tic_depth=3); pl_gbm.y2axis(;ticlabels=0,tic_depth=3); pl_gbm.plot(0.5*(gbm.mjd_start + gbm.mjd_stop)[gbm_soft], 1e-3*get_struct_field (gbm, cnfg.flux[1])[gbm_soft], 0.5* (gbm.mjd_stop - gbm.mjd_start)[gbm_soft], 1e-3*get_struct_field (gbm, cnfg.err[1])[gbm_soft]; sym = "point",color=cl_soft); pl_gbm.plot(0.5*(gbm.mjd_start + gbm.mjd_stop)[gbm_uncat], 1e-3*get_struct_field (gbm, cnfg.flux[1])[gbm_uncat], 0.5* (gbm.mjd_stop - gbm.mjd_start)[gbm_uncat], 1e-3*get_struct_field (gbm, cnfg.err[1])[gbm_uncat]; sym = "point"); pl_gbm.plot([mjdmin,mjdmax],[0,0];color="gray",line=1); pl_gbm.plot([e1,e1],[-0.4,1.9];line=1,width=2,depth=10); pl_gbm.plot([e2,e2],[-0.4,1.9];line=1,width=2,depth=10); pl_gbm.plot([e3,e3],[-0.4,1.9];line=1,width=2,depth=10); pl_gbm.plot([e4,e4],[-0.4,1.9];line=1,width=2,depth=10); pl_gbm.ylabel("\begin{center}GBM \\ 25--50\,keV \\ $[$Crab$]$\end{center}"R); variable comp = xfig_new_vbox_compound(plg, xfig_multiplot(pl_asm,pl_asmh, pl_maxi, pl_bat,pl_gbm; xlabel="MJD")); comp.render("monster.pdf"); print("STACK:"); _print_stack; exit;
